Continuous monitoring of tube and endobronchial blocker position

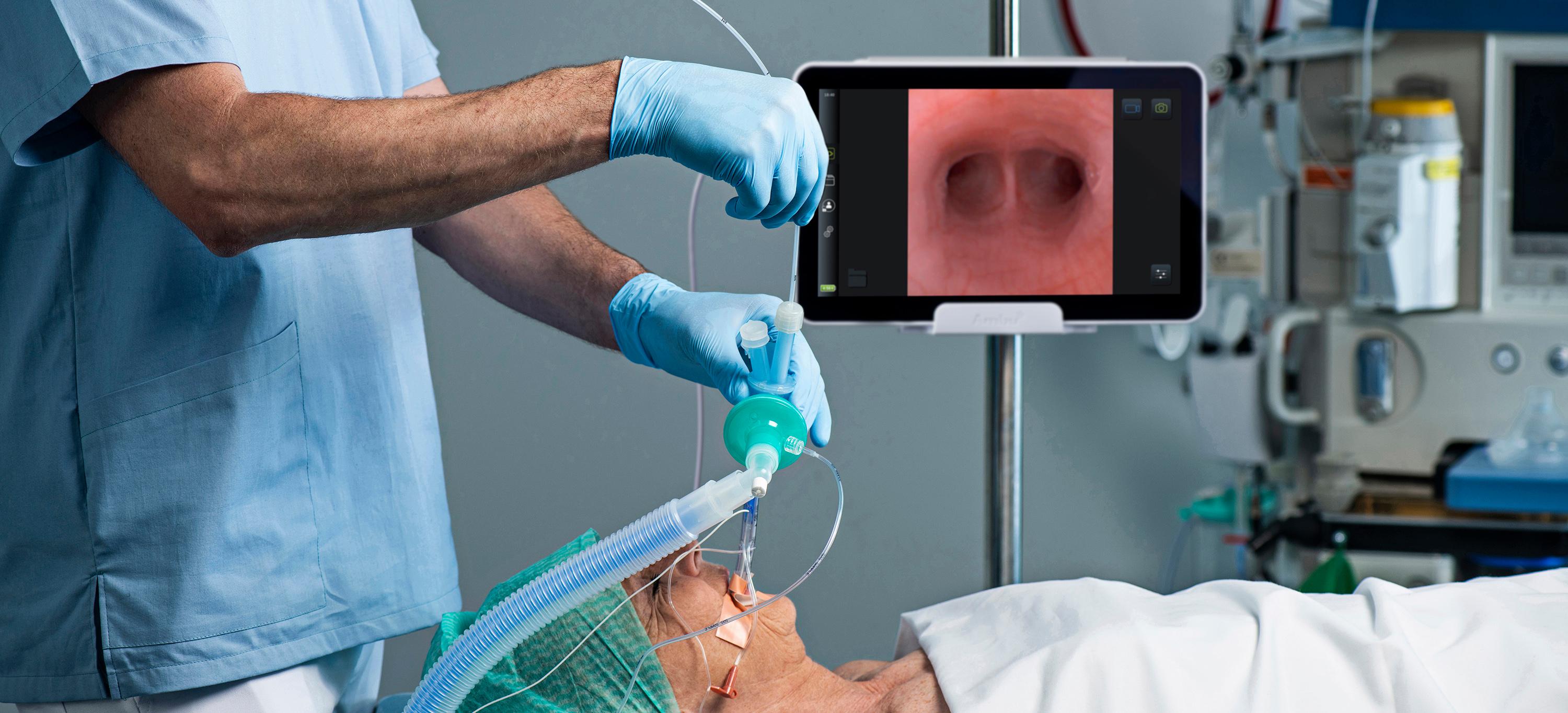

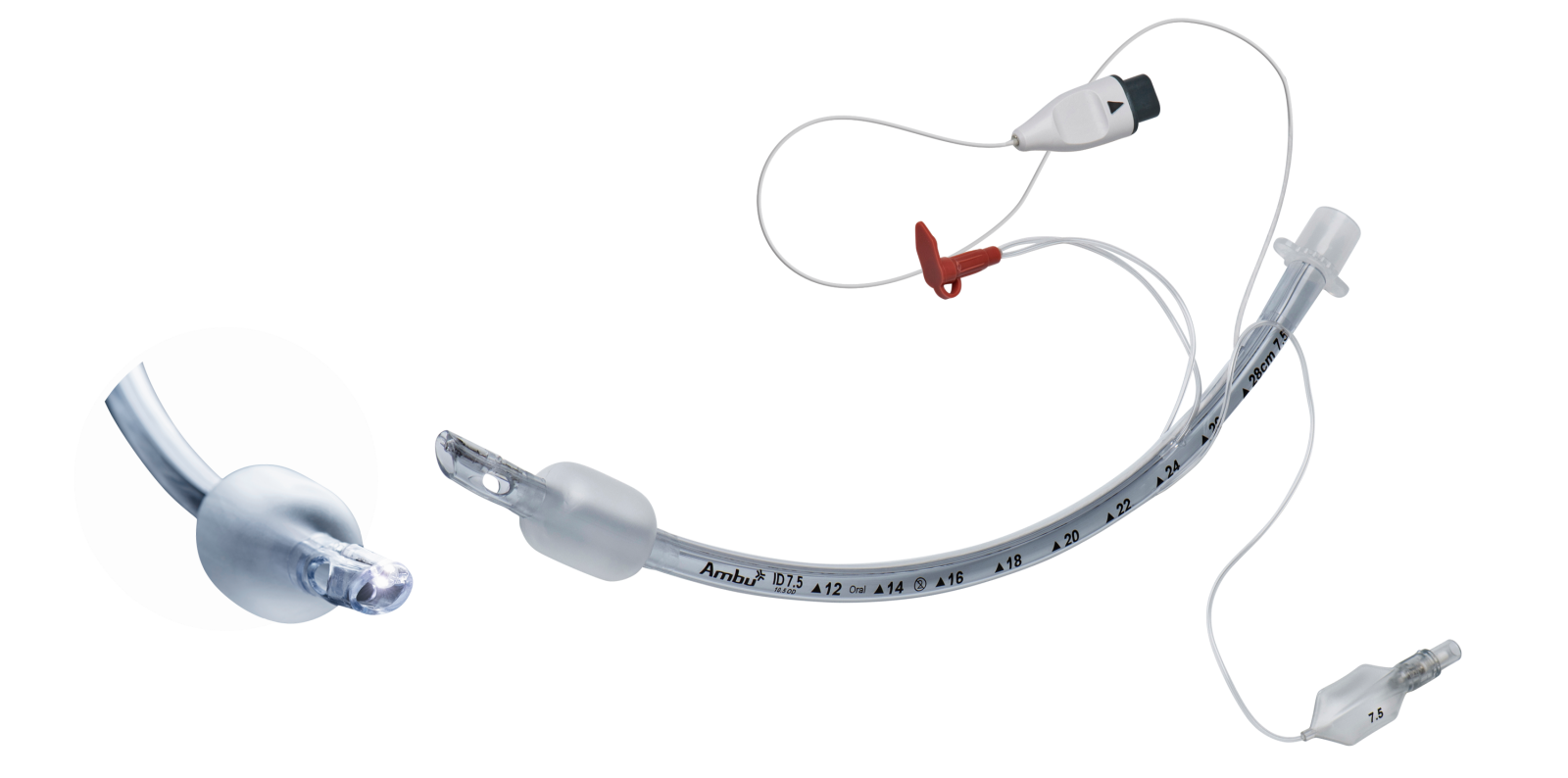

VivaSight-SL is a new generation of single lumen tubes with integrated high-resolution camera. The integrated camera technology makes placement of the tube fast and effective and provides continuous visual monitoring of endotracheal tube and endobronchial blocker placement throughout the procedure. VivaSight-SL is indicated for use during routine and difficult intubation procedures.
Together with the single-use endobronchial blocker, VivaSight-EB, lung isolation can be fast and effective ensuring that dislocation can be easily detected and corrected.
The full Ambu portfolio for SLV includes VivaSight-DL, and VivaSight-SL with integrated high-resolution camera together with the endobronchial blocker, VivaSight-EB, and the single-use bronchoscope Ambu® aScope™ 4 Broncho Slim. The portfolio offers the flexibility to choose between different visualisation solutions – all contributing to increased patient safety.
Overcoming challenges of placement and positioning
Single-use endobronchial blocker
VivaSight-EB is a single-use endobronchial blocker designated for Single Lung Ventilation. It is compatible with VivaSight-SL for a complete airway management solution. The VivaSight-EB consists of a sterile, single-use, steerable balloon-tipped catheter that is visually guided to a selected bronchial segment to affect balloon blockage of the distal airway.
Sizes:VivaSight-SL: 7.0, 7.5 & 8.0 mm (ID)
For OD and length, please refer to datasheet
VivaSight EB: 9 Fr, length 700 mm
Resolution:CIF 320 x 240 (76,800 pixels)
Depth of field:12-60 mm
Field of view:~100º diagonal
Light sources:2 white LEDs (49.5mW – 66mW)
Spare partsThere are no spare parts or accessories for this product.
(249,29 KB - pdf)
(285,79 KB - pdf)
(3,97 MB - pdf)
(234,44 KB - pdf)
Instructions For Use
(11,93 MB - pdf)
Note: US: Rx only
VivaSight is manufactured by ETView LTD and distributed by Ambu A/S
